二叉树及三种序

---

树节点定义

public static class TreeNode {
    public int val;
    public TreeNode left;
    public TreeNode right;

    public TreeNode(int v) {
        val = v;
    }
}

三种序

先序遍历

public static void preOrder(TreeNode head) {
    if (head == null) {
        return;
    }
    System.out.print(head.val + " ");
    preOrder(head.left);
    preOrder(head.right);
}

中序遍历

public static void inOrder(TreeNode head) {
    if (head == null) {
        return;
    }
    inOrder(head.left);
    System.out.print(head.val + " ");
    inOrder(head.right);
}

后序遍历

public static void posOrder(TreeNode head) {
    if (head == null) {
        return;
    }
    posOrder(head.left);
    posOrder(head.right);
    System.out.print(head.val + " ");
}

测试代码

public class BinaryTreeTraversalRecursion {

	public static class TreeNode {
		public int val;
		public TreeNode left;
		public TreeNode right;

		public TreeNode(int v) {
			val = v;
		}
	}

	// 先序打印所有节点，递归版
	public static void preOrder(TreeNode head) {
		if (head == null) {
			return;
		}
		System.out.print(head.val + " ");
		preOrder(head.left);
		preOrder(head.right);
	}

	// 中序打印所有节点，递归版
	public static void inOrder(TreeNode head) {
		if (head == null) {
			return;
		}
		inOrder(head.left);
		System.out.print(head.val + " ");
		inOrder(head.right);
	}

	// 后序打印所有节点，递归版
	public static void posOrder(TreeNode head) {
		if (head == null) {
			return;
		}
		posOrder(head.left);
		posOrder(head.right);
		System.out.print(head.val + " ");
	}

	public static void main(String[] args) {
		TreeNode head = new TreeNode(1);
		head.left = new TreeNode(2);
		head.right = new TreeNode(3);
		head.left.left = new TreeNode(4);
		head.left.right = new TreeNode(5);
		head.right.left = new TreeNode(6);
		head.right.right = new TreeNode(7);

		System.out.println("先序遍历递归版");
		preOrder(head);
		System.out.println();

		System.out.println("中序遍历递归版");
		inOrder(head);
		System.out.println();

		System.out.println("后序遍历递归版");
		posOrder(head);
	}
}

⭐ 递归序

public static void f(TreeNode head) {
    if (head == null) {
        return;
    }
    // 第一次来到 head 节点
    f(head.left);
    // 第二次来到 head 节点
    f(head.right);
    // 第三次来到 head 节点
}

💡 Tip

任何一个不为空的节点在二叉树的遍历中都会经过三次，空节点经过依次就返回

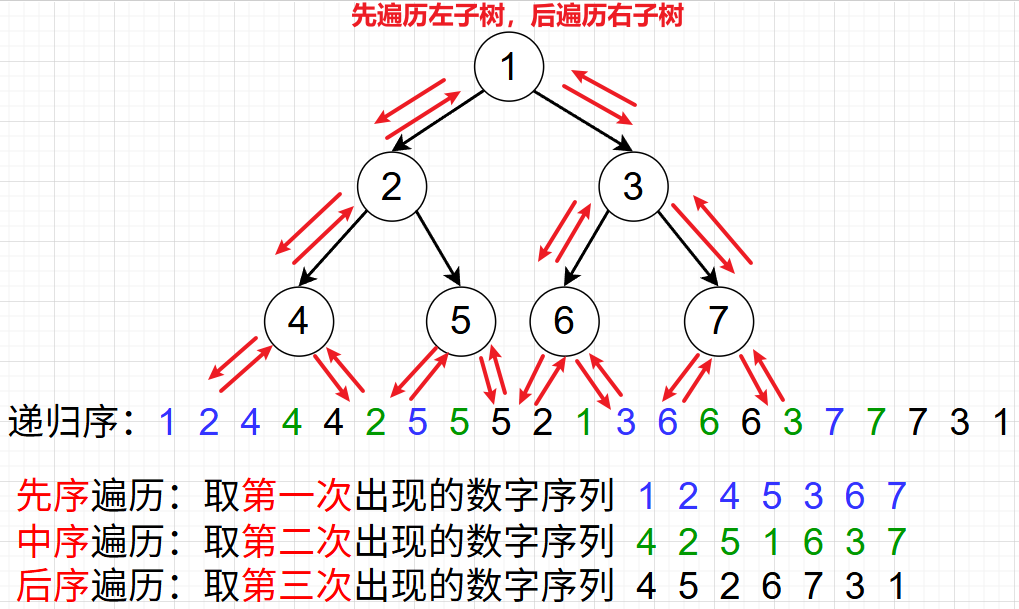

递归序遍历如下
