用户下单

需求分析 ​

产品分析 ​

（1）用户下单业务说明 ​

在电商系统中，用户是通过下单的方式通知商家，用户已经购买了商品，需要商家进行备货和发货 ​

用户下单后会产生订单相关数据，订单数据需要能够体现如下信息 ​

（2）用户将菜品或者套餐加入购物车后，可以点击购物车中的 "去结算" 按钮，页面跳转到订单确认页面，点击 "去支付" 按钮则完成下单操作 ​

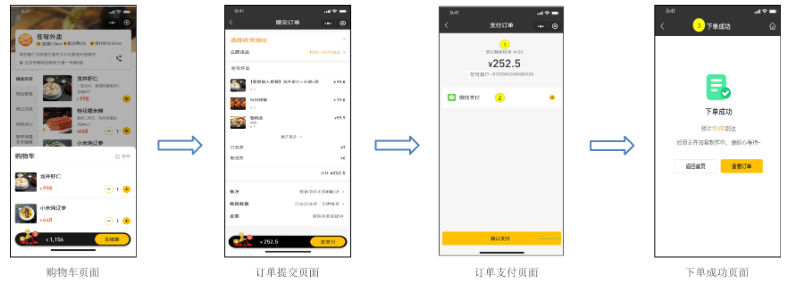

用户点餐业务流程（效果图） ​


表设计 ​

用户下单业务对应的数据表为 orders 表和 order_detail 表（一对多关系，一个订单关联多个订单明细） ​

表名含义说明
orders订单表主要存储订单的基本信息(如: 订单号、状态、金额、支付方式、下单用户、收件地址等)
order_detail订单明细表主要存储订单详情信息(如: 该订单关联的套餐及菜品的信息)

（1）orders 订单表 ​

字段名数据类型说明备注
idbigint主键自增
numbervarchar(50)订单号
statusint订单状态1 待付款 2 待接单 3 已接单 4 派送中 5 已完成 6 已取消
user_idbigint用户 id逻辑外键
address_book_idbigint地址 id逻辑外键
order_timedatetime下单时间
checkout_timedatetime付款时间
pay_methodint支付方式1 微信支付 2 支付宝支付
pay_statustinyint支付状态0 未支付 1 已支付 2 退款
amountdecimal(10,2)订单金额
remarkvarchar(100)备注信息
phonevarchar(11)手机号冗余字段
addressvarchar(255)详细地址信息冗余字段
consigneevarchar(32)收货人冗余字段
cancel_reasonvarchar(255)订单取消原因
rejection_reasonvarchar(255)拒单原因
cancel_timedatetime订单取消时间
estimated_delivery_timedatetime预计送达时间
delivery_statustinyint配送状态1 立即送出 0 选择具体时间
delivery_timedatetime送达时间
pack_amountint打包费
tableware_numberint餐具数量
tableware_statustinyint餐具数量状态1 按餐量提供 0 选择具体数量

（2）order_detail 订单明细表 ​

字段名数据类型说明备注
idbigint主键自增
namevarchar(32)商品名称冗余字段
imagevarchar(255)商品图片路径冗余字段
order_idbigint订单 id逻辑外键
dish_idbigint菜品 id逻辑外键
setmeal_idbigint套餐 id逻辑外键
dish_flavorvarchar(50)菜品口味
numberint商品数量
amountdecimal(10,2)商品单价

说明：用户提交订单时，需要往订单表 orders 中插入一条记录，并且需要往 order_detail 中插入一条或多条记录 ​

OrderController ​

创建 OrderController 并提供用户下单方法 ​

java
package com.sky.controller.user;

import com.sky.dto.OrdersPaymentDTO;
import com.sky.dto.OrdersSubmitDTO;
import com.sky.result.PageResult;
import com.sky.result.Result;
import com.sky.service.OrderService;
import com.sky.vo.OrderPaymentVO;
import com.sky.vo.OrderSubmitVO;
import com.sky.vo.OrderVO;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

/**
 * 订单
 */
@RestController("userOrderController")
@RequestMapping("/user/order")
@Slf4j
@Api(tags = "C端-订单接口")
public class OrderController {

    @Autowired
    private OrderService orderService;

    /**
     * 用户下单
     *
     * @param ordersSubmitDTO
     * @return
     */
    @PostMapping("/submit")
    @ApiOperation("用户下单")
    public Result<OrderSubmitVO> submit(@RequestBody OrdersSubmitDTO ordersSubmitDTO) {
        log.info("用户下单：{}", ordersSubmitDTO);
        OrderSubmitVO orderSubmitVO = orderService.submitOrder(ordersSubmitDTO);
        return Result.success(orderSubmitVO);
    }

}

OrderService ​

创建 OrderService 接口，并声明用户下单方法 ​

java
package com.sky.service;

import com.sky.dto.*;
import com.sky.vo.OrderSubmitVO;

public interface OrderService {

    /**
     * 用户下单
     * @param ordersSubmitDTO
     * @return
     */
    OrderSubmitVO submitOrder(OrdersSubmitDTO ordersSubmitDTO);
}

OrderServiceImpl ​

创建 OrderServiceImpl 实现 OrderService 接口 ​

java
package com.sky.service.impl;

/**
 * 订单
 */
@Service
@Slf4j
public class OrderServiceImpl implements OrderService {
    @Autowired
    private OrderMapper orderMapper;
    @Autowired
    private OrderDetailMapper orderDetailMapper;
    @Autowired
    private ShoppingCartMapper shoppingCartMapper;
    @Autowired
    private AddressBookMapper addressBookMapper;


    /**
     * 用户下单
     *
     * @param ordersSubmitDTO
     * @return
     */
    @Transactional
    public OrderSubmitVO submitOrder(OrdersSubmitDTO ordersSubmitDTO) {
        //异常情况的处理（收货地址为空、超出配送范围、购物车为空）
        AddressBook addressBook = addressBookMapper.getById(ordersSubmitDTO.getAddressBookId());
        if (addressBook == null) {
            throw new AddressBookBusinessException(MessageConstant.ADDRESS_BOOK_IS_NULL);
        }

        Long userId = BaseContext.getCurrentId();
        ShoppingCart shoppingCart = new ShoppingCart();
        shoppingCart.setUserId(userId);

        //查询当前用户的购物车数据
        List<ShoppingCart> shoppingCartList = shoppingCartMapper.list(shoppingCart);
        if (shoppingCartList == null || shoppingCartList.size() == 0) {
            throw new ShoppingCartBusinessException(MessageConstant.SHOPPING_CART_IS_NULL);
        }

        //构造订单数据
        Orders order = new Orders();
        BeanUtils.copyProperties(ordersSubmitDTO,order);
        order.setPhone(addressBook.getPhone());
        order.setAddress(addressBook.getDetail());
        order.setConsignee(addressBook.getConsignee());
        order.setNumber(String.valueOf(System.currentTimeMillis()));
        order.setUserId(userId);
        order.setStatus(Orders.PENDING_PAYMENT);
        order.setPayStatus(Orders.UN_PAID);
        order.setOrderTime(LocalDateTime.now());

        //向订单表插入1条数据
        orderMapper.insert(order);

        //订单明细数据
        List<OrderDetail> orderDetailList = new ArrayList<>();
        for (ShoppingCart cart : shoppingCartList) {
            OrderDetail orderDetail = new OrderDetail();
            BeanUtils.copyProperties(cart, orderDetail);
            orderDetail.setOrderId(order.getId());
            orderDetailList.add(orderDetail);
        }

        //向明细表插入n条数据
        orderDetailMapper.insertBatch(orderDetailList);

        //清理购物车中的数据
        shoppingCartMapper.deleteByUserId(userId);

        //封装返回结果
        OrderSubmitVO orderSubmitVO = OrderSubmitVO.builder()
                .id(order.getId())
                .orderNumber(order.getNumber())
                .orderAmount(order.getAmount())
                .orderTime(order.getOrderTime())
                .build();

        return orderSubmitVO;
    }

}

OrderMapper ​

创建 OrderMapper 接口和对应的 xml 映射文件 ​

java
package com.sky.mapper;

@Mapper
public interface OrderMapper {
    /**
     * 插入订单数据
     * @param order
     */
    void insert(Orders order);
}

OrderMapper.xml ​

xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.sky.mapper.OrderMapper">

    <insert id="insert" parameterType="Orders" useGeneratedKeys="true" keyProperty="id">
        insert into orders
        (number, status, user_id, address_book_id, order_time, checkout_time, pay_method, pay_status, amount, remark,
         phone, address, consignee, estimated_delivery_time, delivery_status, pack_amount, tableware_number,
         tableware_status)
        values (#{number}, #{status}, #{userId}, #{addressBookId}, #{orderTime}, #{checkoutTime}, #{payMethod},
                #{payStatus}, #{amount}, #{remark}, #{phone}, #{address}, #{consignee},
                #{estimatedDeliveryTime}, #{deliveryStatus}, #{packAmount}, #{tablewareNumber}, #{tablewareStatus})
    </insert>
</mapper>

OrderDetailMapper ​

创建 OrderDetailMapper 接口和对应的 xml 映射文件 ​

java
package com.sky.mapper;

import com.sky.entity.OrderDetail;
import java.util.List;

@Mapper
public interface OrderDetailMapper {

    /**
     * 批量插入订单明细数据
     * @param orderDetails
     */
    void insertBatch(List<OrderDetail> orderDetails);

}

OrderDetailMapper.xml ​

xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.sky.mapper.OrderDetailMapper">

    <insert id="insertBatch" parameterType="list">
        insert into order_detail
        (name, order_id, dish_id, setmeal_id, dish_flavor, number, amount, image)
        values
        <foreach collection="orderDetails" item="od" separator=",">
            (#{od.name},#{od.orderId},#{od.dishId},#{od.setmealId},#{od.dishFlavor},
             #{od.number},#{od.amount},#{od.image})
        </foreach>
    </insert>

</mapper>
